    WSRD CNC Ported Cylinder Head Packages | Can-Am X3 & Ski-Doo

    WSRD CNC Ported Cylinder Head Packages | Can-Am X3 & Ski-Doo

    by WSRD
    $2,349.00 - $3,259.00
    $2,349.00
    $2,349.00 - $3,259.00
    $2,349.00
    Availability:
    In stock
    Availability:
    In stock
    Availability:
    In stock
    Choose a Cylinder Head Packages

    From mild to wild and everything in between, WSRD offers cylinder head and engine packages to suite your application and power needs!

    **All cylinder head package pricing includes a client supplied cylinder head core. Please ship WSRD your completely assembled cylinder head. All unused parts will be returned to you. When purchasing the V4 Cylinder Head please include your cylinder head core, camshaft housing assembly, and your supplied camshaft option (unless purchasing new from WSRD).**

    Please ship your cylinder head core to the following address:
    Whalen's Speed R&D - 161 Commercial Avenue, Paw Paw, MI 49079

    What's Included?

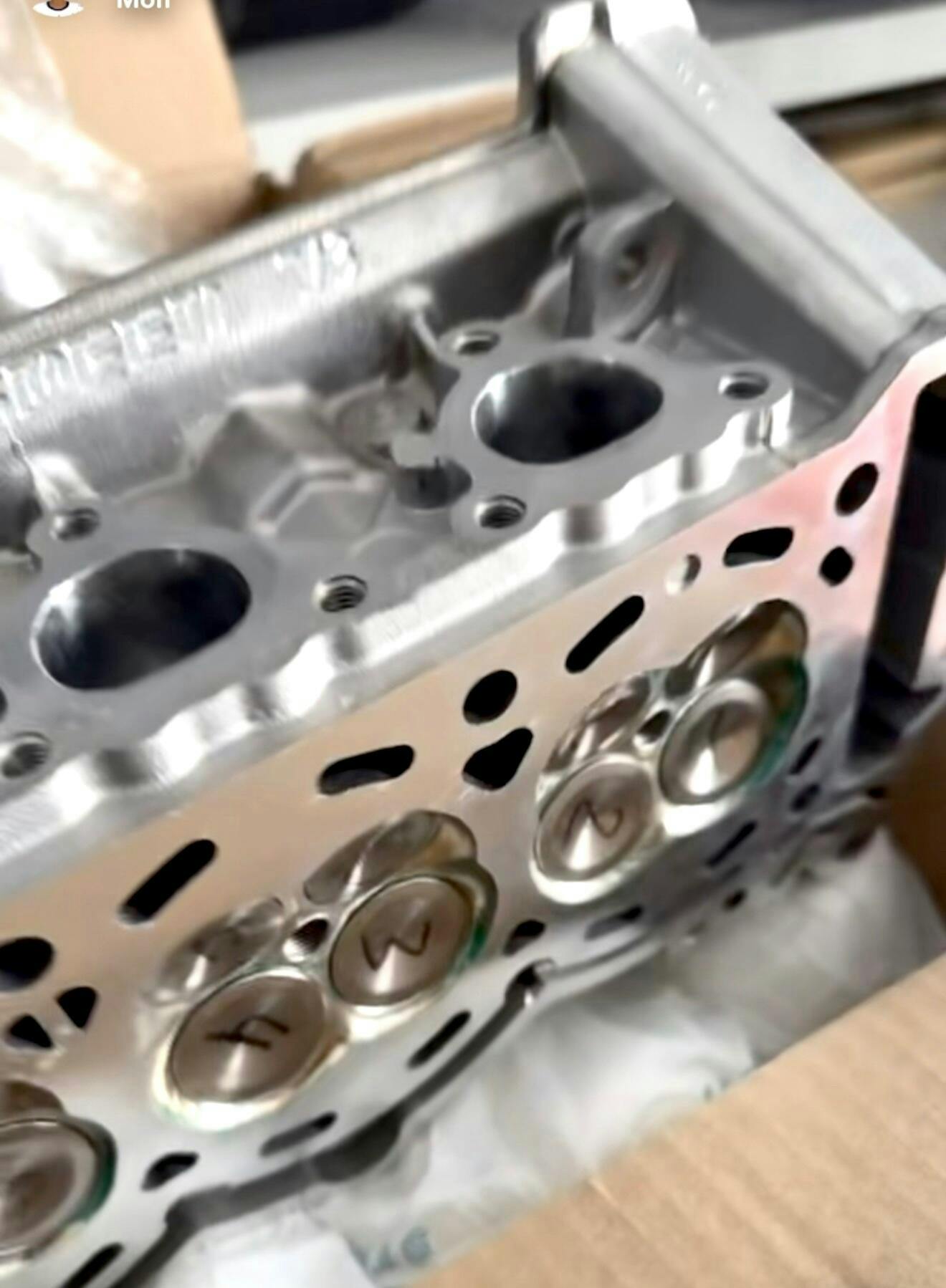

    • WSRD CNC Cylinder Head Porting
    • WSRD +1mm Intake Valves - 30mm
    • WSRD +1mm Exhaust Valves - 26mm
    • WSRD "Duner" Valve Spring Set - Includes Stainless Steel Retainers
    • OEM BRP Valve Stem Seals
    • WSRD Decking Service
    • WSRD Valve Job Service
    • WSRD Vapor Hone Cleaning Service
    • WSRD Cylinder Head Assembly Service

    What's Included?

    • ~ WSRD CNC Cylinder Head Porting
    • ~ WSRD +1mm Intake Valves - 30mm
    • ~ WSRD +1mm Exhaust Valves - 26mm
    • WSRD "Drag" Solid Bucket Conversion Kit
    • WSRD Decking Service
    • WSRD Valve Job Service
    • WSRD Vapor Hone Cleaning Service
    • WSRD Cylinder Head & Solid Bucket Assembly Services

    The WSRD Solid Bucket Conversion Valve Spring Kit includes; (12) WSRD Solid Lifter Buckets, (12) WSRD "Drag" Valve Springs, (12) WSRD Titanium Valve Spring Retainers, and (12) WSRD Valve Stem Seals.

    Unmatched DEVELOPMENT WITH Record Setting Results

    Intake Port - Stock vs. WSRD

    Intake Port - Stock vs. WSRD

    Stock Port Average Air Flow: 109.1 CFM
    WSRD CNC Port Average Air Flow: 125.9 CFM

    The WSRD CNC Port sees an average of ~10% CFM increase over stock with a peak of ~40%.

    Stock Combustion Chamber Volume: 19 CC
    WSRD V3 Combustion Chamber Volume: 19.5 CC
    WSRD V4 Combustion Chamber Volume: 20 CC

    Exhaust Port - Stock vs. WSRD

    Exhaust Port - Stock vs. WSRD

    Stock Port Average Air Flow: 94.1 CFM
    WSRD CNC Port Average Air Flow: 111.5 CFM

    The WSRD CNC Port sees an average of 18% CFM increase over stock with a peak of 20%.

    Stock Combustion Chamber Volume: 19 CC
    WSRD V3 Combustion Chamber Volume: 19.5 CC
    WSRD V4 Combustion Chamber Volume: 20 CC

    •
