JRR RaceGrade M1 Thermocouple EGT Module | Can-Am X3

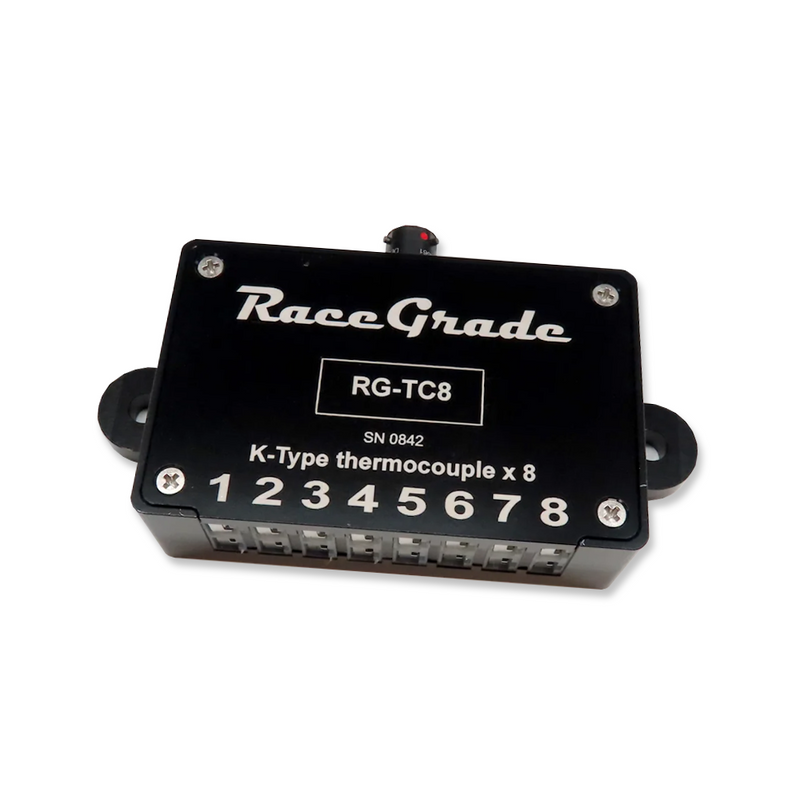

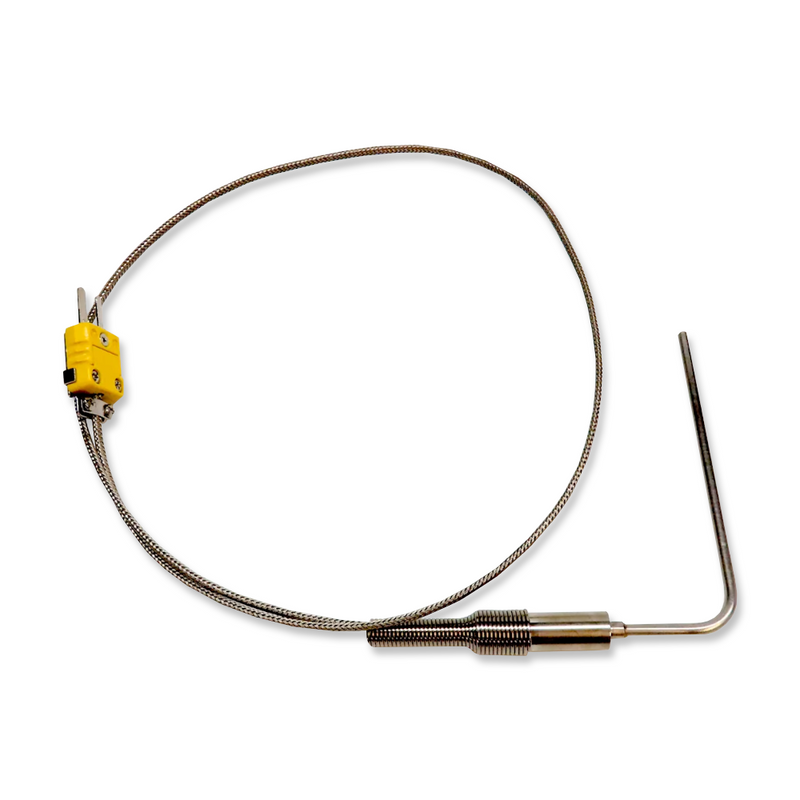

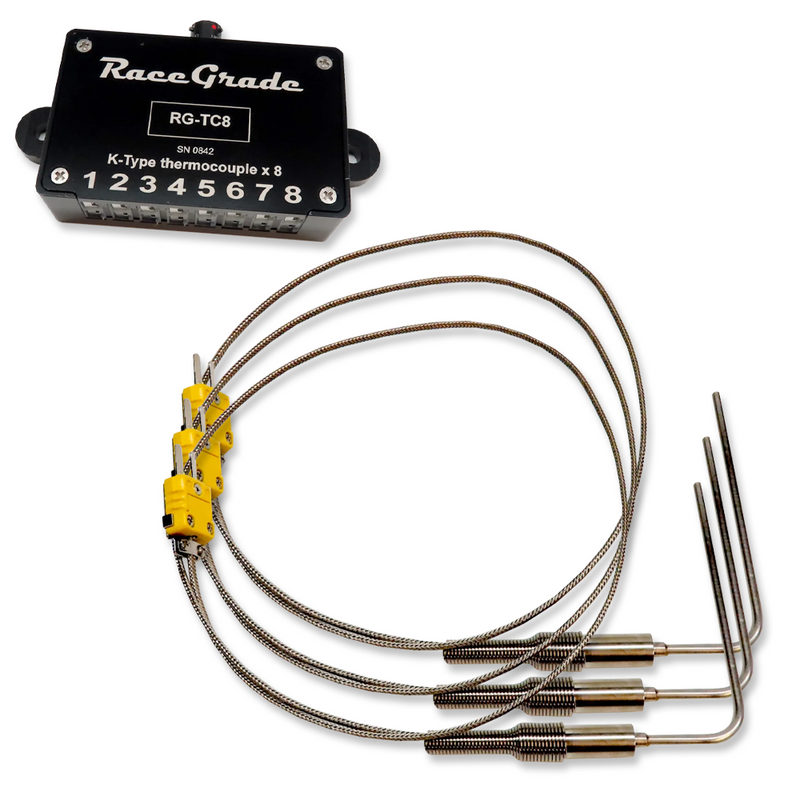

The RaceGrade TC8 is a CAN based device that reads up to 8 thermocouple temperature sensors, typically used for exhaust gas temperature (EGT) measurement in motorsport applications.

Features:

• Lightweight, compact package
• 4 wires: 12v, ground, CAN high and CAN low
• Built in amplifiers for up to 8 channels
• Splash protection, but not waterproof
• Compatible with MoTeC ECUs, dash loggers
• Compatible with many other ECUs and logging devices that feature configurable CAN or support for MoTeC E8xx expander
• Deutsch ASL mating connector sold separately
