Name: BRP QRS Clutch & Components | Can-Am X3
Brand: BRP Can-Am
SKU: 420450431
Price: 5.99 USD
Availability: InStock
Rating: 5.0 (2 reviews)

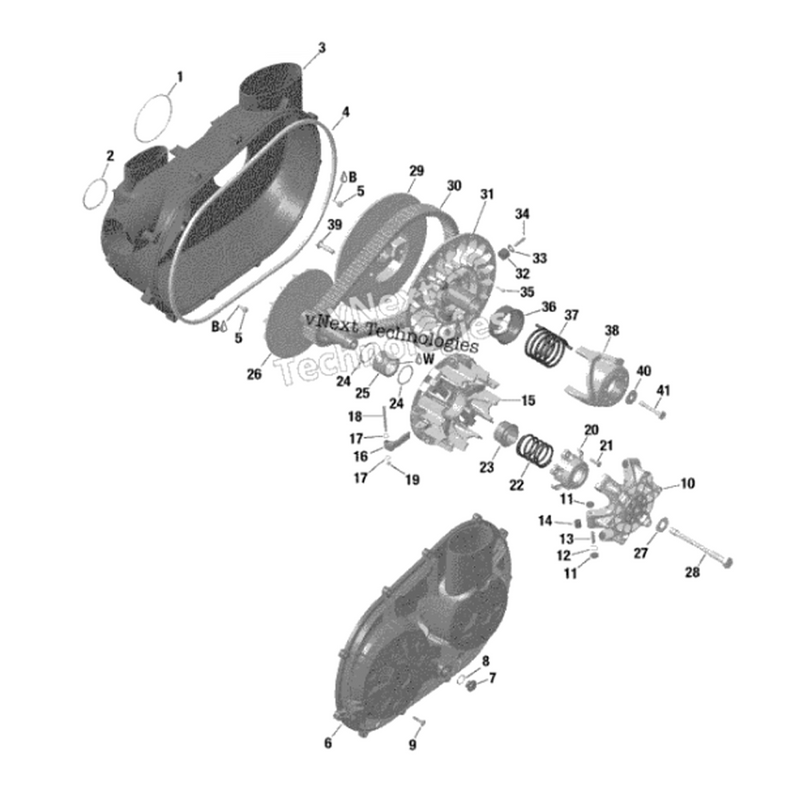

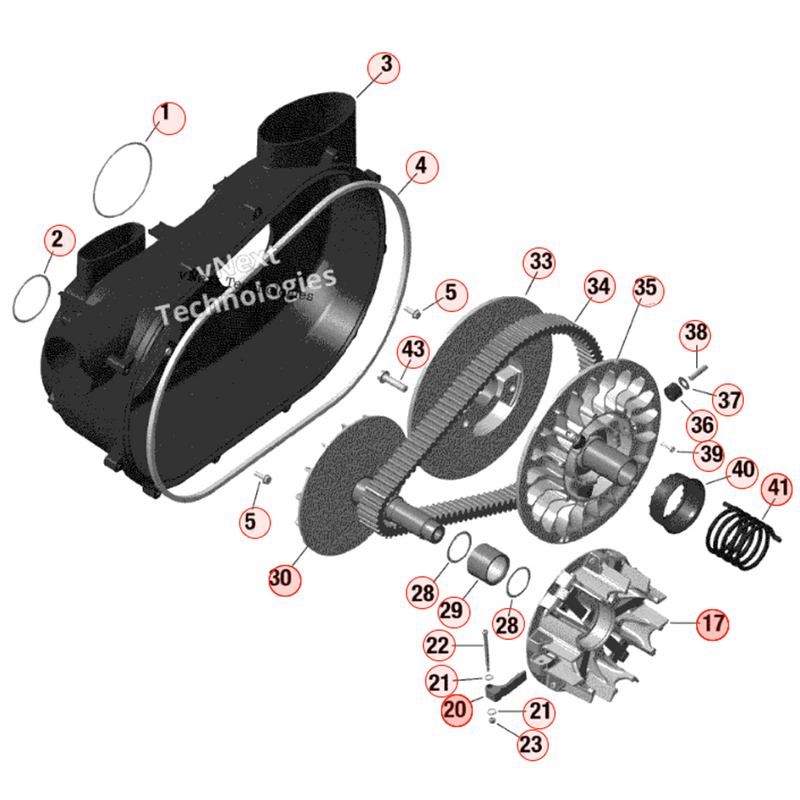

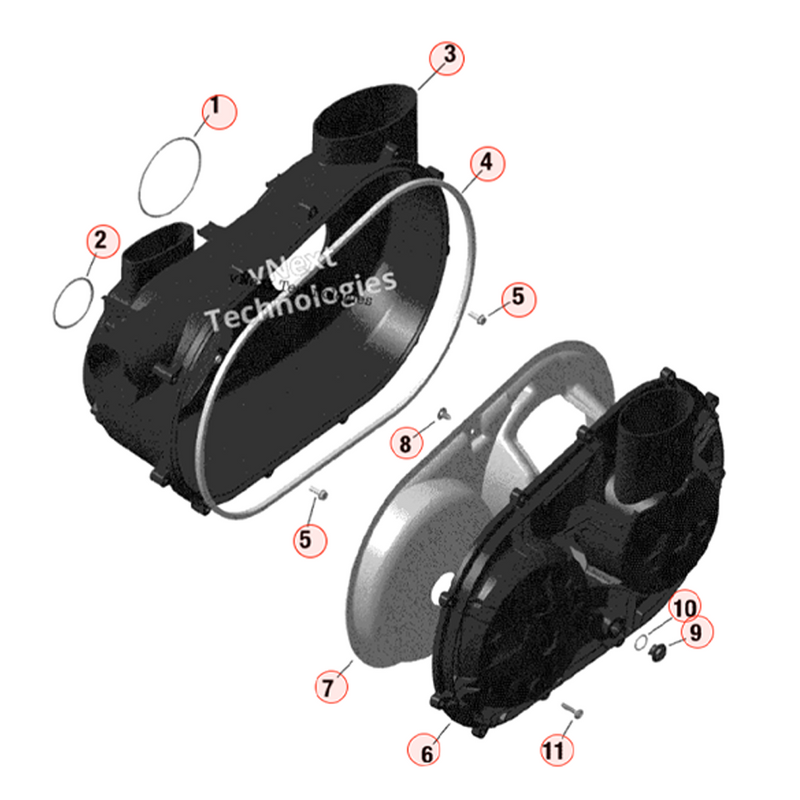

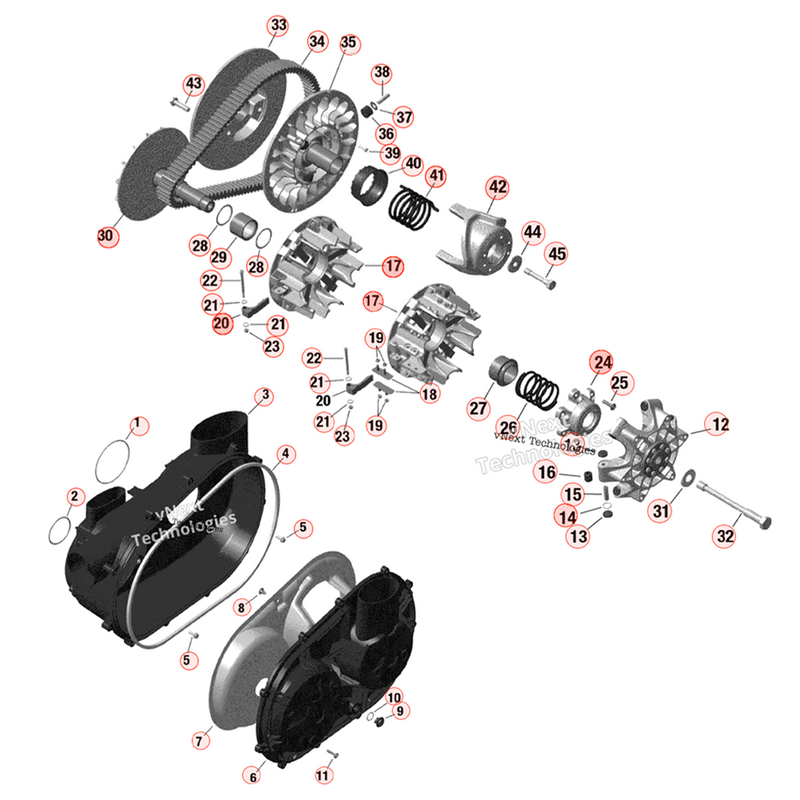

#1 - Clutching Housing O-Ring

#2 - Clutch Housing O-Ring

#3 - Clutch Housing (Without Belt Temp Sensor)

#3 - Clutch Housing (With Belt Temp Sensor Port)

#4 - Clutch Housing Seal

#5 - Clutching Housing Mounting Bolt (8 Total - Sold Each)

#6 - Clutching Housing Cover

#7 - Clutch Cover Insulation Mat

#8 - Insulation Mat Trim Button (2 Total - Sold Each)

#9 - Clutch Housing Drain Plug

#10 - Clutch Housing Drain Plug O-Ring

#11 - Clutch Housing Cover Bolt (11 Total - Sold Each)

#12 - Primary Governor Cup Assembly

#13 - Primary Slider Shoe (12 Total - Sold Each)

#13 - Primary Slider Shoe Set (12 Total)

#14 - Primary Slider Shoe Damper O-Ring (3 Total - Sold Each)

#15 - Primary Governor Cup Roller Pin (6 Total - Sold Each)

#16 - Primary Governor Cup Roller (6 Total - Sold Each)

#17 - Primary Outer Half Assembly - Turbo & Turbo R Models

#17 - Primary Outer Half Assembly - Turbo RR Models

#18 - Slider Plate

#19 - Slider Plate Mounting M5 Lock Nut

#20-23 - Primary Weight Set | 120HP Base Models

#20-23 - Primary Weight Set | 172HP Turbo R Models

#20-23 - Primary Weight Set | 195HP/200HP Turbo RR Models

#24 - Primary Bearing Cover - Turbo & Turbo R Models

#24 - Primary Bearing Cover - Turbo RR Models

#25 - Primary Bearing Cover Bolt (6 Total - Sold Each)

#26 - Primary Spring

#27 - Primary Spring Retainer

#28 - Primary Bearing Thrust Washer (2 Total - Sold Each)

#29 - Primary Bearing

#30 - Primary Inner Half Assembly

#31 - Primary Bolt Washer

#32 - Primary Bolt

#33 - Secondary Inner Half Assembly

#34 - Drive Belt

#35-39 - Secondary Outer Half Assembly

#36 - Secondary Roller (3 Total - Sold Each)

#37 - Secondary Roller Thrust Washer (3 Total - Sold Each)

#38 - Secondary Roller Pin (3 Total - Sold Each)

#39 - Secondary Roller Pin Retainer Bolt (3 Total - Sold Each)

#40 - Secondary Spring Support

#41 - Secondary Spring - Turbo R & Turbo RR Models (Upgrade for 120HP Models)

#42 - Secondary Helix 37/50 - Turbo & Turbo R Models

#42 - Secondary Helix 48/52 - Turbo RR Models

#43 - Secondary Helix to Inner Half Assembly Bolt (3 Total - Sold Each)

#44 - Secondary Bolt Collar Washer

#45 - Secondary Bolt
