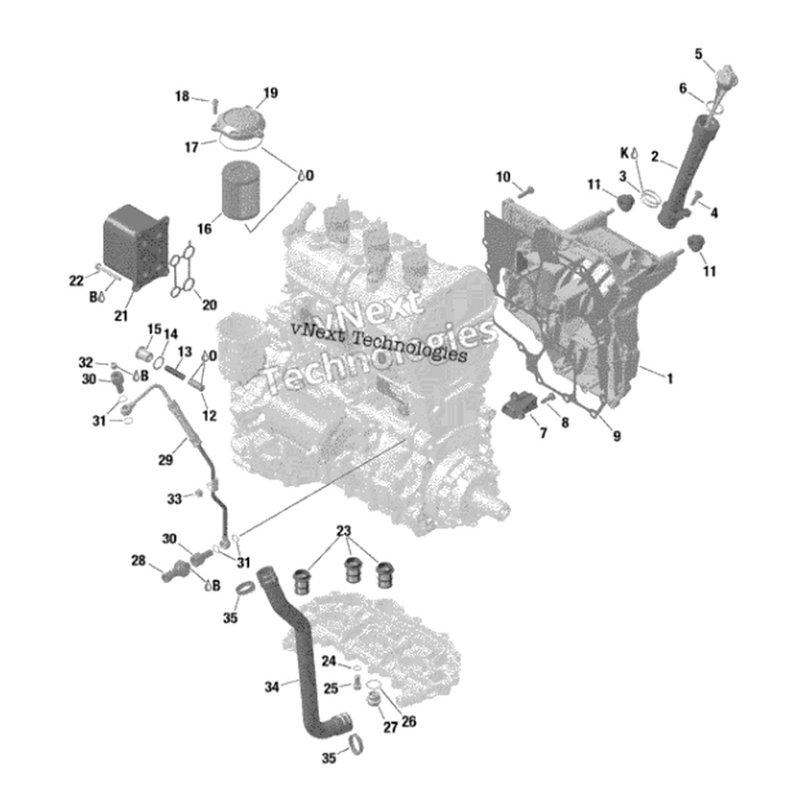

Name: BRP Engine Lubrication | 2017-2019 Can-Am X3
Brand: BRP Can-Am
SKU: 420656708
Price: 105.99 USD
Availability: InStock

#1 - Oil Sump Cover | Dip Stick Side

#2 - Oil Dip Stick Tube

#3 - Oil Dip Stick Tube O-Ring

#4 - Oil Dip Stick Tube Mounting Bolt

#5 - Oil Dip Stick

#6 - Oil Dip Stick O-Ring

#7 - Oil Suction Pipe

#8 - Oil Suction Pipe Mounting Bolt

#9 - Oil Sump Cover Gasket

#10 - Oil Sump Cover Bolt

#11 - Oil Sump Cover Grommet

#12 - Oil Pressure Regulator Piston

#13 - Oil Pressure Regulator Spring

#14 - Oil Pressure Regulator Cap Crush Washer

#15 - Oil Pressure Regulator Cap

#16 - Oil Filter

#17 - Oil Filter Cap O-Ring

#18 - Oil Filter Cap Bolt

#19 - Oil Filter Cap

#20 - Oil Cooler Gasket

#21 - Oil Cooler

#22 - Oil Cooler Bolt

#23 - Oil Pan Oil Sieve

#24 - Small Oil Drain Plug Crush Washer

#25 - Small Oil Drain Plug

#26 - Big Oil Drain Plug Crush Washer

#27 - Big Oil Drain Plug

#28 - Oil Pressure Switch

#29 - Turbocharger Oil Feed Line

#30 - Turbocharger Feed Line Banjo Fitting

#32 - Banjo Fitting Plug

#33 - Turbocharger Feed Line Mounting Nut

#34 - Turbocharger Oil Drain Hose

#35 - Turbocharger Oil Drain Hose Clamp
