Name: BRP '17-'19 Engine Block Components - Crankcase | Can-Am X3
Brand: OEM
SKU: 555 420893001
Price: 1679.99 USD
Availability: InStock

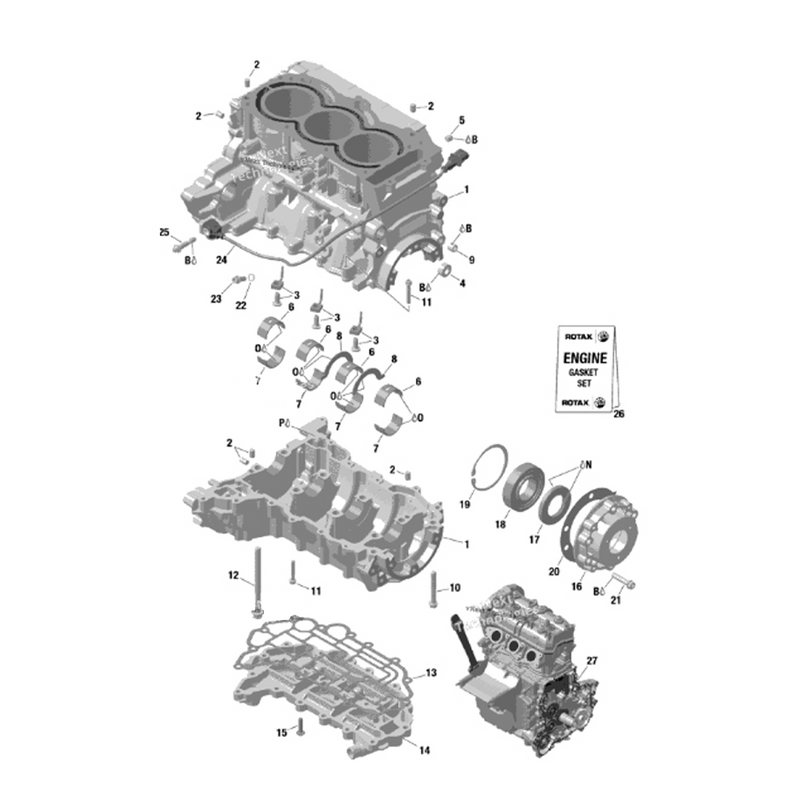

#1-7 - Engine Block

#2 - Engine to Cylinder Head Dowels (6 Total)

#3 - Oil Squiter & Banjo Bolt (3 Total)

#6 - Main Bearing (Top - 4 Total)

#7 - Main Bearing (Bottom - 4 Total)

#8 - Thrust Washers (2 Total)

#10 - Case Bolt (2 Total)

#11 - Case Bolt (12 Total)

#12 - Main Bolt (8 Total)

#13 - Oil Sump to Case Gasket

#14 - Oil Sump

#15 - Oil Sump to Case Bolts (17 Total)

#16 - PTO Cover

#17 - PTO Front Seal

#18 - PTO Roller Bearing

#19 - PTO Roller Bearing Retaining Clip

#20 - PTO Cover Gasket

#21 - PTO Cover Bolts (6 Bolts)

#24 - Knock Sensor

#25 - Knock Sensor to Engine Block Bolt

#26 - Complete Engine Gasket Set

#27 - Complete Engine Long Block
