FP | TiAL | Xona Rotor XR42 Turbocharger | Can-Am X3

  • Sale
  • $ 3,199.00
  • Regular price $ 3,299.00
Shipping calculated at checkout.

Xona Rotor XR42 is featured in the 2017-2019 WS300XR, WS320XR, WS340XR and 2020 WS300RR Performance Packages for the stock ecu.

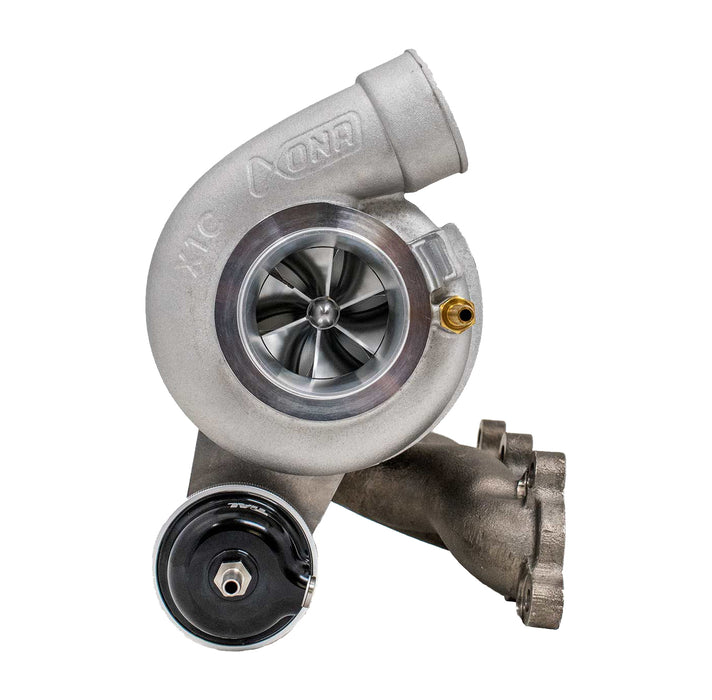

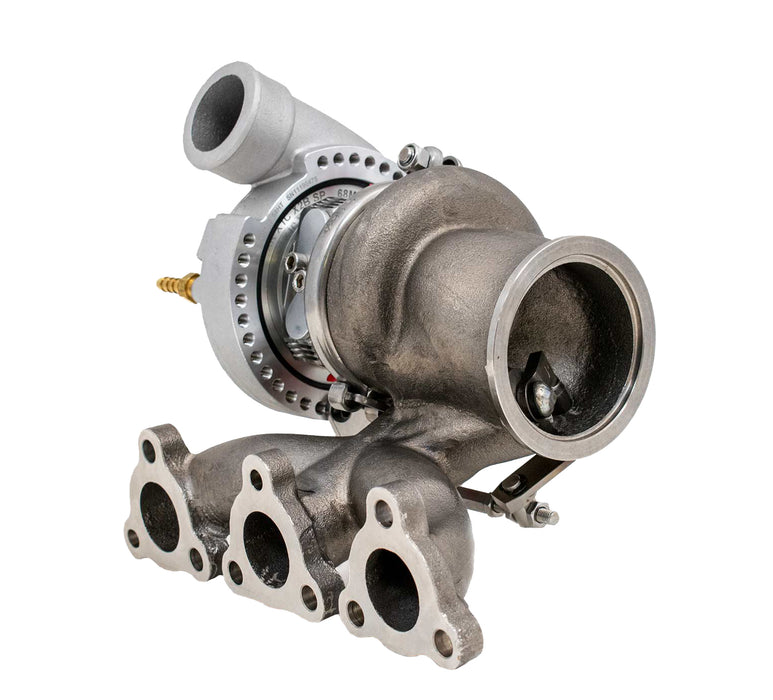

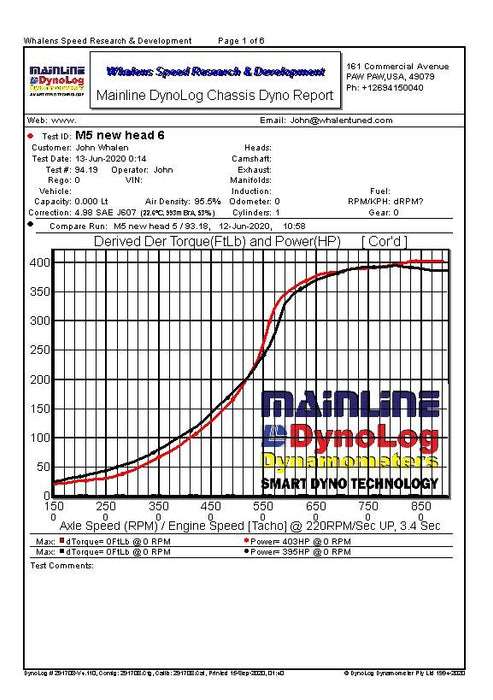

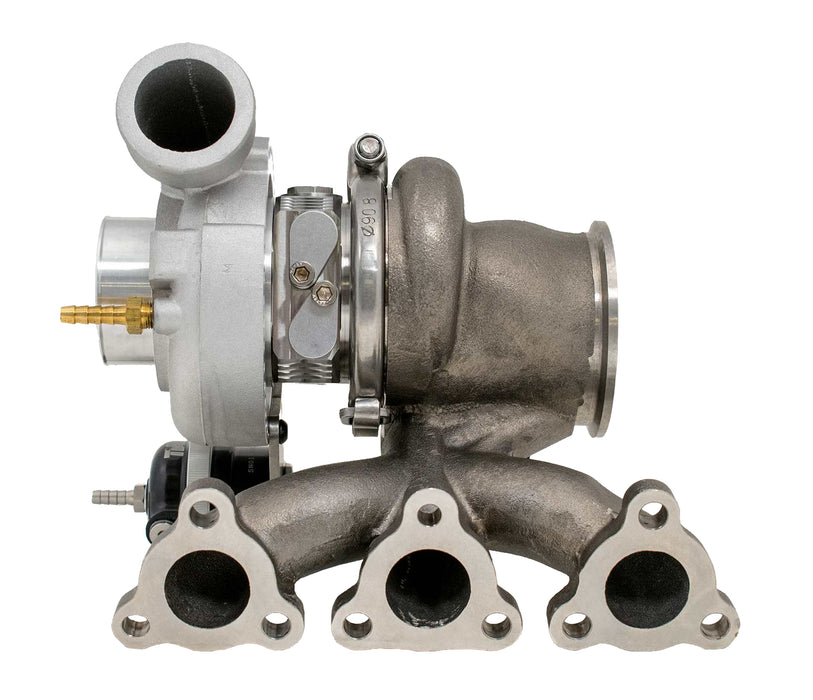

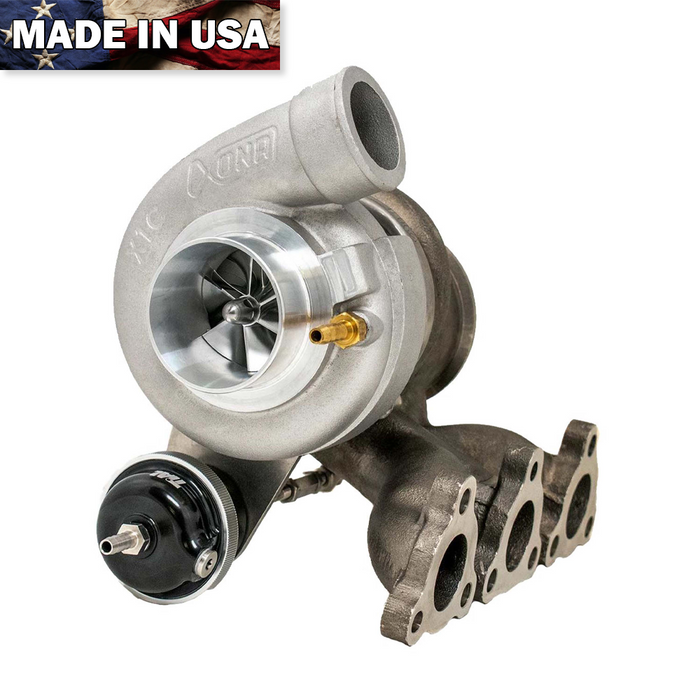

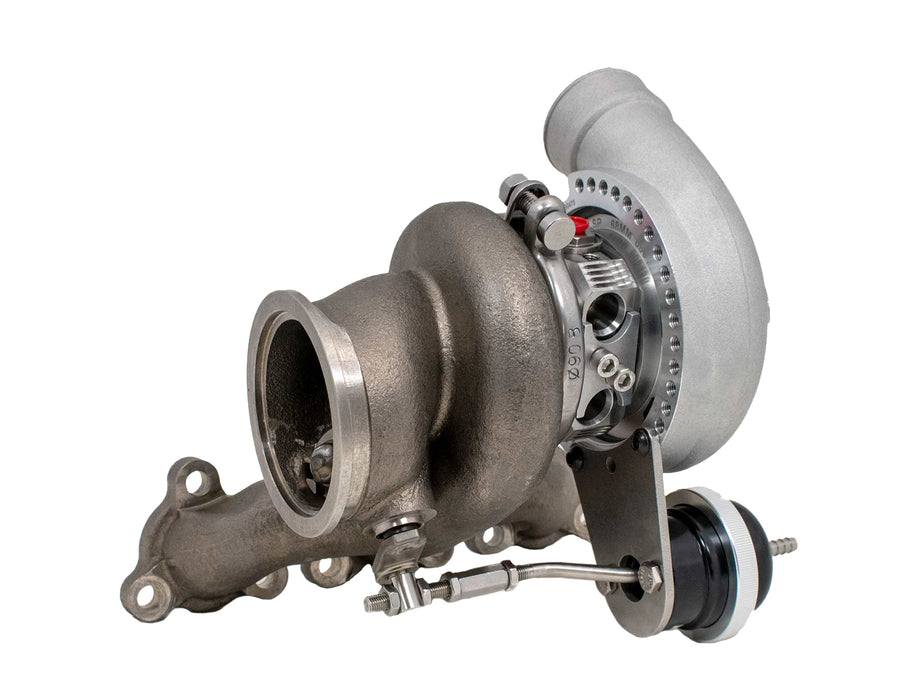

The heart of the turbo is the XR4948 Xona rotor turbo that has been customized to adapt to an all new turbofold that increases exhaust flow over the oem unit and allows us to bolt such a large turbo so easily to the engine. The turbo in its natural state is rated at 49lb/min(meaning ~510hp rated). We have pushed this turbo to 50psi boost making over 400HP at the hubs on our personal machine. At lower power levels we see roughly 11-12% loss in CVT but at higher power levels, belt slip is just something that comes with the territory. Fuel calculations put us around 475hp at the crankshaft.

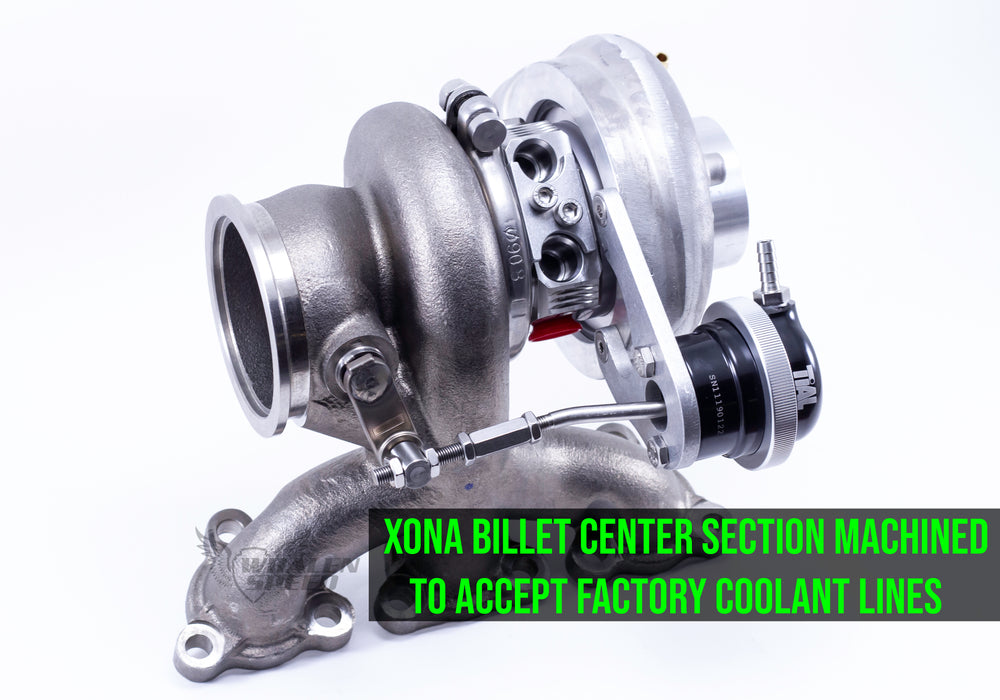

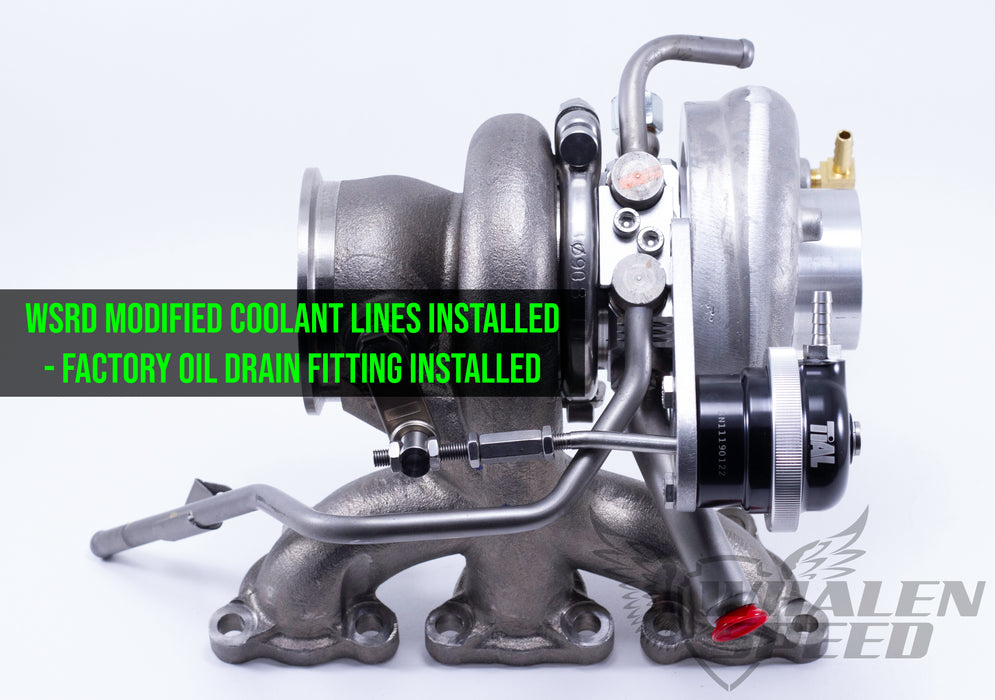

The turbo utilizes the factory oil drain flange, oem coolant lines(Must cut bracket in half), and the oem oil feed line. Turbos come with a Tial wastegate. We also have an install kit that allows us to adapt to the oem intercooler with a quality couplers/clamps and aluminum bend.

What is included?

  • WSRD/FP XR42 Turbocharger
  • TiAL MVI 2.5 Wastegate

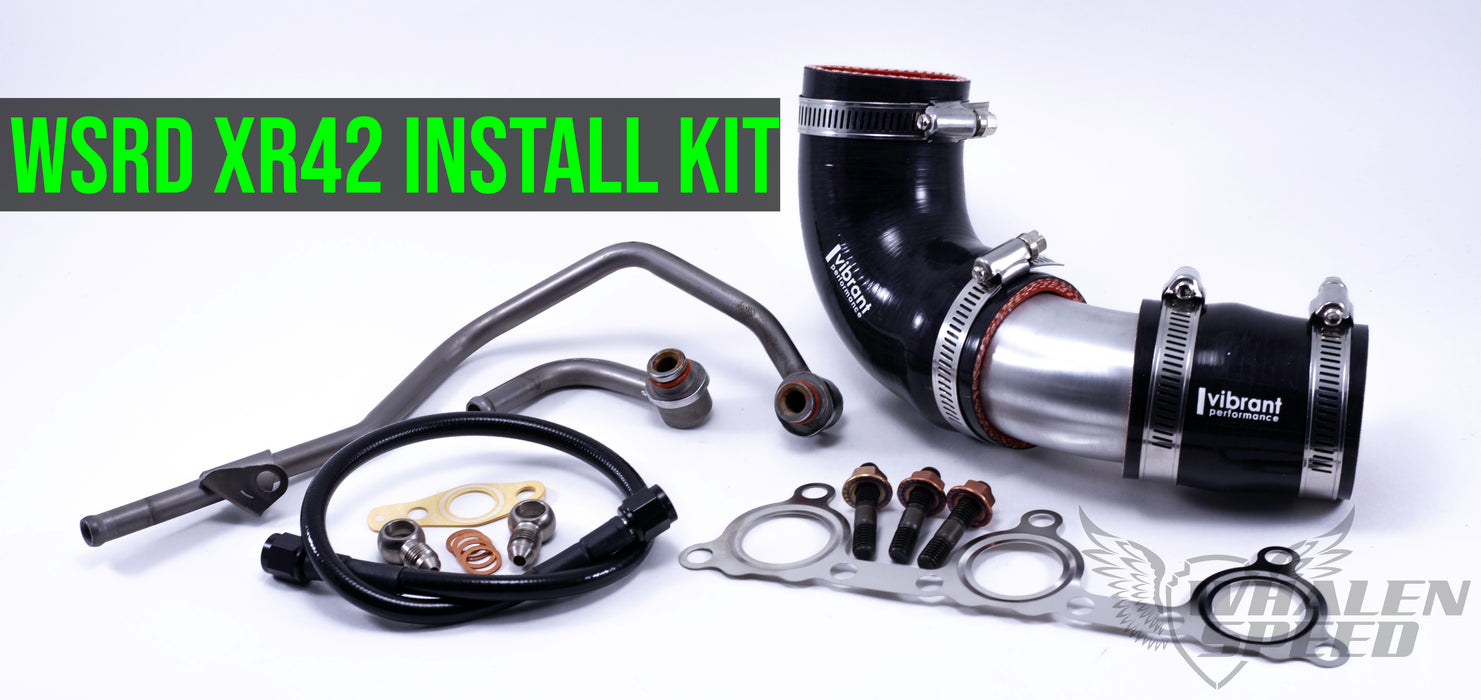

  • WSRD XR42 Install Kit
    • WSRD Oil Feed Line Kit
    • WSRD Oil Drain Gasket
    • WSRD Upper Charge Tube Kit

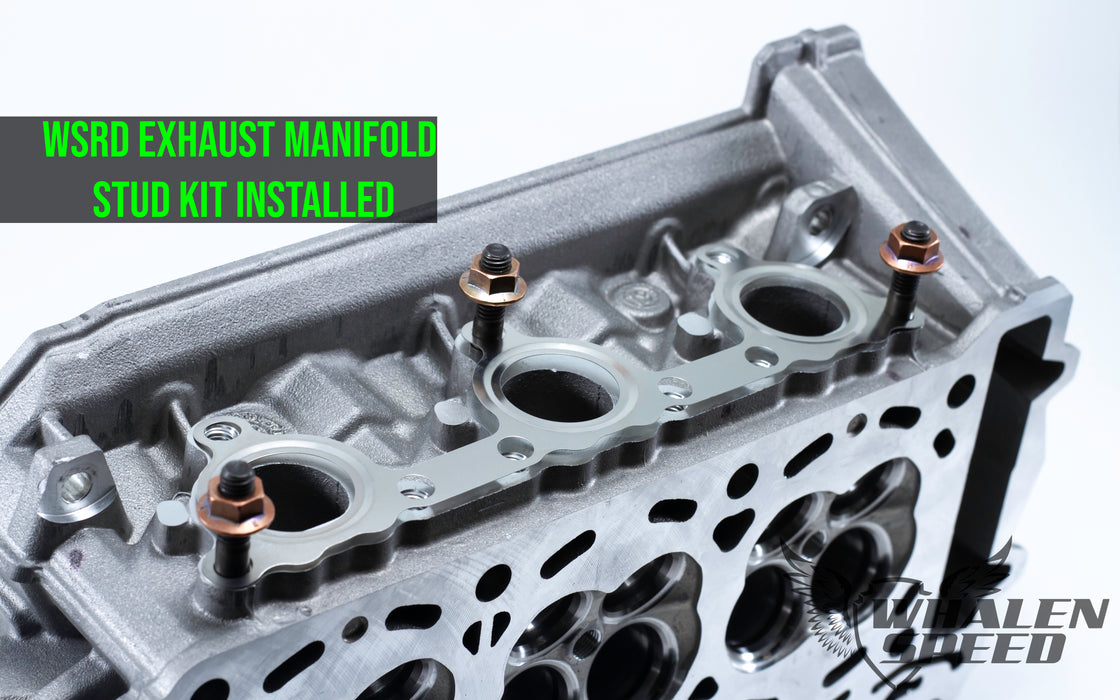

    • WSRD Exhaust Manifold Stud Kit
    • OEM Coolant Line O-Rings
    • OEM Exhaust Manifold Gasket

Turbocharger Specs:

  • Rated for 420HP - 42LB/Min Flow Rate

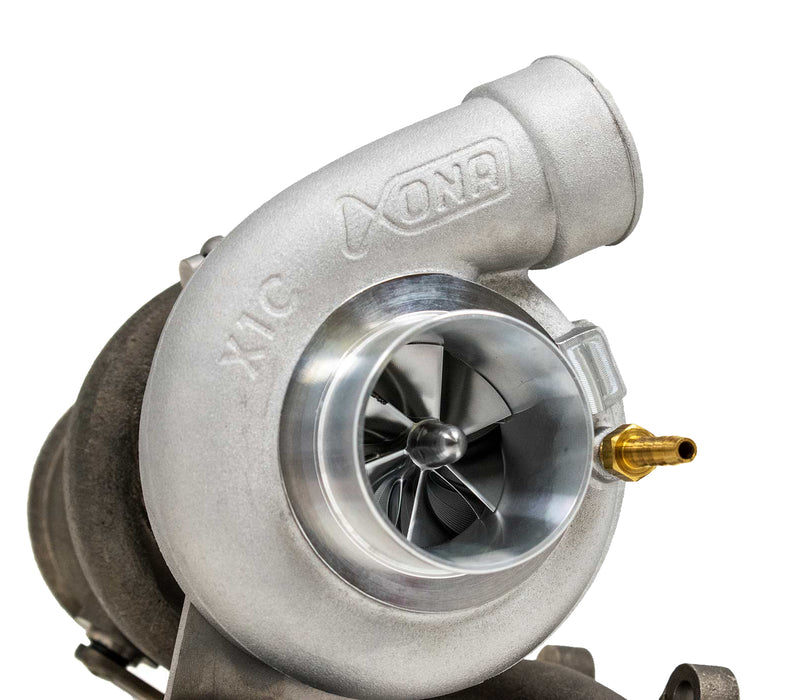

  • Compressor Wheel
    • 49.5mm Inducer
    • 68mm Exducer
  • Exhaust Wheel - 48mm
  • Billet Ball Bearing Center Section

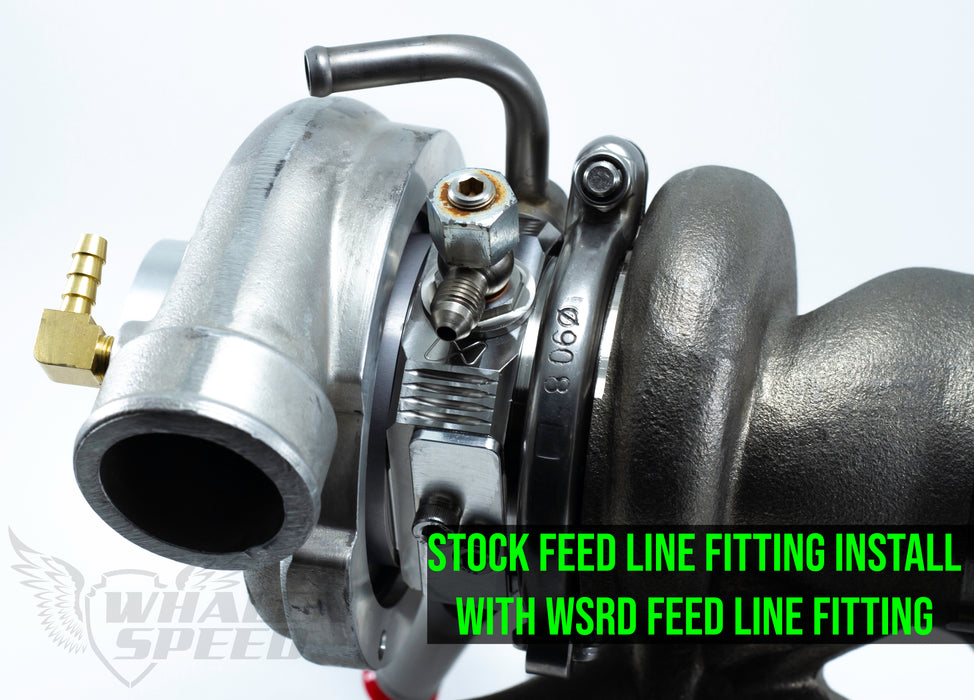

    • Machined for factory oil feed line fitting, oil drain fitting and modified coolant line
  • 2.375" Intake Inlet
  • 2" Compressor Outlet
